37021 | HELUKABEL
Rubber connection cable H07RN-F 2 x 2.5 mm², AWG 14, unshielded, black, 37021
Unit Price (€ / mtr.)
2.4038 € *
Available in 5 Days: 2,400 mtr. - if ordered today

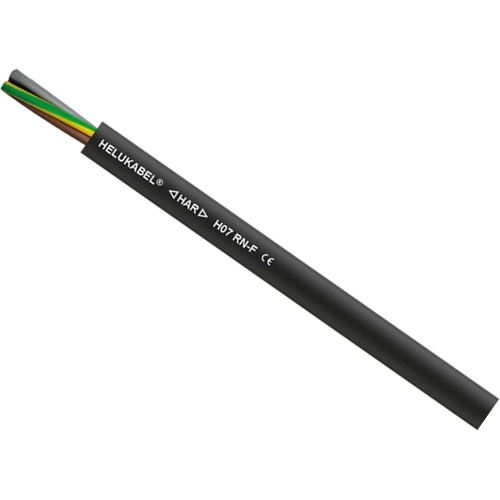

Rubber connection cable, 37021, HELUKABEL
The 37021 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Rated voltage U0 | 450 V | |
| Outer diameter | 13.1 mm | |
| Shielding | unshielded | |
| Temperature range (unmoved) | -30 °C to 60 °C | |
| Rated voltage | 750 V | |
| AWG cross-section | AWG 14 | |
| Number of cores | 2 | |
| Core insulation material | rubber | |
| Drag chain suitable | No | |
| Temperature range (active) | -25 °C to 60 °C | |
| Test voltage | 2.5 kV | |
| Material | rubber | |
| Cable cross-section | 2.5 mm² | |
| Cable material | copper, bright | |
| Protective conductor available | No | |
| Colour | black | |
| Conductor category | CL.5 = fine stranded | |
| Version | connection line |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
