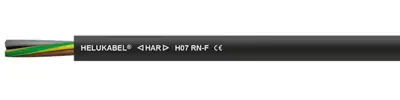

Rubber connection cable H07RN-F 2 x 1.0 mm², AWG 18, unshielded, black, 37019
Unit Price (€ / mtr.)
1.4875 € *
Available: 75 mtr.
Available in 5 Days: 300 mtr. - if ordered today
Total Price:
1.49 € *
Price list
Quantity
Price per unit*
1 mtr.
1.4875 €
10 mtr.
1.3685 €
50 mtr.
1.2852 €
100 mtr.
1.2019 €
*incl. VAT plus shipping costs
Subject to prior sale
Rubber connection cable, 37019, HELUKABEL
The 37019 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Temperature range (unmoved) | -30 °C to 60 °C | |
| Halogen free | No | |
| Number of cores | 2 | |
| Core insulation material | rubber | |
| Outer diameter | 10 mm | |
| Version | connection line | |
| Cable material | copper, bright | |
| Temperature range (active) | -25 °C to 60 °C | |
| Rated voltage | 750 V | |
| Protective conductor available | No | |
| Test voltage | 2.5 kV | |
| Material | rubber | |
| Conductor category | CL.5 = fine stranded | |
| AWG cross-section | AWG 18 | |
| Shielding | unshielded | |
| Colour | black | |
| Rated voltage U0 | 450 V | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
