37006 | HELUKABEL
Rubber connection cable H07RN-F 1 x 16 mm², AWG 6, unshielded, black, 37006
Unit Price (€ / mtr.)
4.7719 € *
Standard delivery time from the manufacturer is: 6 Weeks

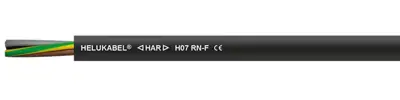

Rubber connection cable, 37006, HELUKABEL
The 37006 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Core insulation material | rubber | |
| Colour | black | |
| Number of cores | 1 | |
| Protective conductor available | No | |
| Outer diameter | 13.4 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 6 | |
| Test voltage | 2.5 kV | |
| Halogen free | No | |
| Core colour sequence | black | |
| Cable cross-section | 16 mm² | |
| Version | connection line | |
| Material | rubber | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Rated voltage U0 | 450 V | |
| Temperature range (unmoved) | -30 °C to 60 °C | |
| Temperature range (active) | -25 °C to 60 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 750 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
