37004 | HELUKABEL
Rubber connection cable H07RN-F 1 x 6.0 mm², AWG 10, unshielded, black, 37004
Unit Price (€ / mtr.)
2.0349 € *
Available in 5 Days: 1,100 mtr. - if ordered today

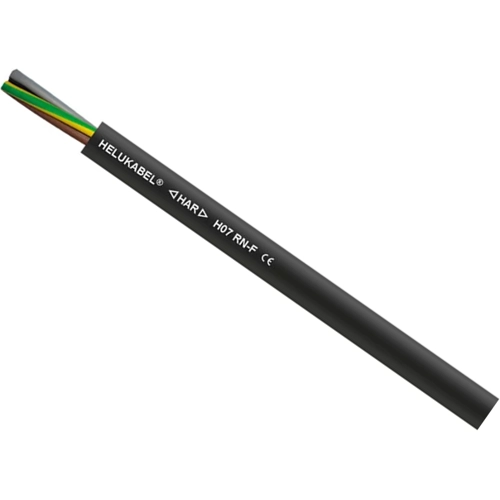

Rubber connection cable, 37004, HELUKABEL
The 37004 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 10 | |
| Number of cores | 1 | |
| Temperature range (unmoved) | -30 °C to 60 °C | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Product type | connection cable | |
| Material | rubber | |
| Test voltage | 2.5 kV | |
| Shielding | unshielded | |
| Temperature range (active) | -25 °C to 60 °C | |
| Cable material | copper, bright | |
| Rated voltage | 750 V | |
| Core insulation material | rubber | |
| Protective conductor available | No | |
| Rated voltage U0 | 450 V | |
| Core colour sequence | black | |
| Colour | black | |
| Cable cross-section | 6.0 mm² | |
| Outer diameter | 9.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
