30247 | HELUKABEL

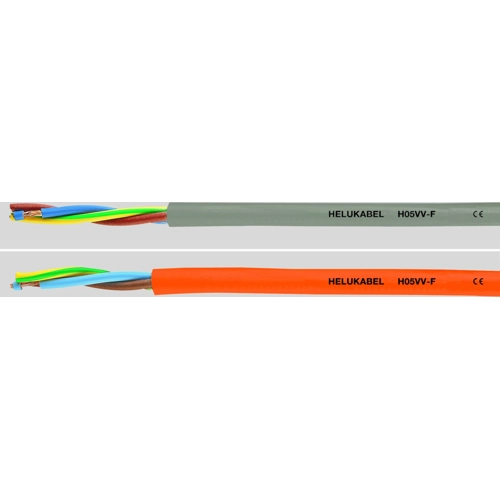

PVC control line H05VV-F 3 G 2.5 mm², AWG 14, unshielded, gray, 30247
Unit Price (€ / mtr.)
2.6180 € *
Available in 5 Days: 700 mtr. - if ordered today
Total Price:
261.80 € *
Price list
Quantity
Price per unit*
100 mtr.
2.6180 €
500 mtr.
2.3205 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 30247, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Test voltage: PVC
- Color: yellow
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 10.3 mm | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| Material | PVC | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Version | control line | |
| Number of cores | 3 | |
| Core insulation material | PVC | |
| Protective conductor available | Yes | |
| AWG cross-section | AWG 14 | |
| Standard number | VDE | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Colour | gray | |
| Cable cross-section | 2.5 mm² | |
| Drag chain suitable | No | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
