30237 | HELUKABEL

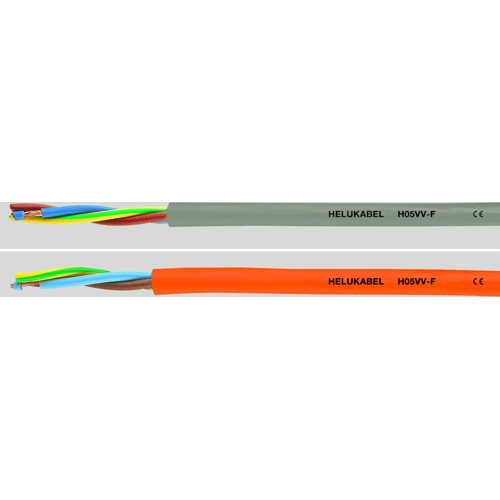

PVC control line H05VV-F 5 G 1.5 mm², AWG 16, unshielded, gray, 30237
Unit Price (€ / mtr.)
2.6180 € *
Available in 5 Days: 100 mtr. - if ordered today
Total Price:
261.80 € *
Price list
Quantity
Price per unit*
100 mtr.
2.6180 €
500 mtr.
2.3324 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 30237, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: yellow
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 9.5 mm | |
| Temperature range (active) | -5 °C to 70 °C | |
| Halogen free | No | |
| Rated voltage U0 | 300 V | |
| Standard number | VDE | |
| Cable cross-section | 1.5 mm² | |
| Core insulation material | PVC | |
| Material | PVC | |
| Product type | control line | |
| Drag chain suitable | No | |
| Rated voltage | 500 V | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| AWG cross-section | AWG 16 | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Test voltage | 2 kV | |
| Protective conductor available | Yes | |
| Number of cores | 5 | |
| Colour | gray | |
| Shielding | unshielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
