30127 | HELUKABEL

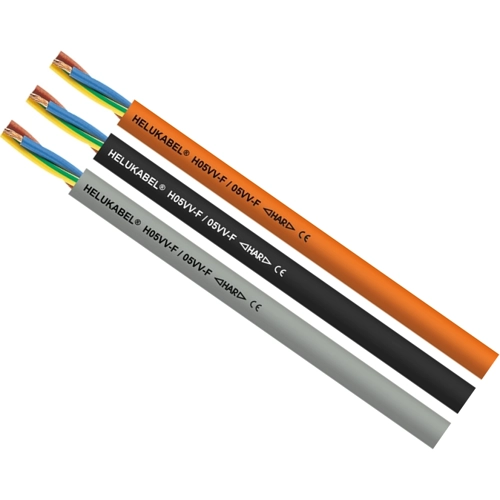

PVC sheathed cable H05VV-F 3 G 0.75 mm², AWG 19, unshielded, gray, 30127
Unit Price (€ / mtr.)
0.9639 € *
Available: 100 mtr.
Available in 5 Days: 100 mtr. - if ordered today
Total Price:
96.39 € *
Price list
Quantity
Price per unit*
100 mtr.
0.9639 €
500 mtr.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 30127, HELUKABEL
This cable is especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment. This cable is suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences of heat. The cable is suitable for fixed installation in furnitures, partition walls, decoration covering and in hollow spaces of prefabricated building parts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 3 | |
| Halogen free | No | |
| Core insulation material | PVC | |
| Drag chain suitable | No | |
| Cable material | copper, bright | |
| Colour | gray | |
| Product type | sheathed cable | |
| Conductor category | CL.5 = fine stranded | |
| Cable cross-section | 0.75 mm² | |
| Protective conductor available | Yes | |
| Test voltage | 2 kV | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| AWG cross-section | AWG 19 | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Shielding | unshielded | |
| Material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
