29742 | HELUKABEL

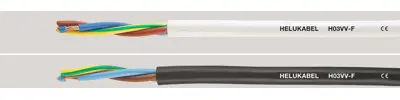

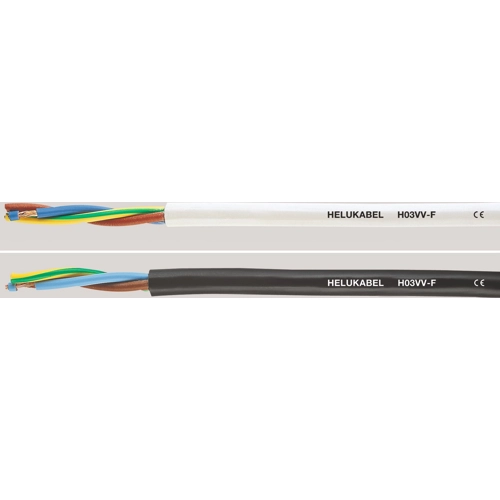

PVC control line H03VV-F 4 G 0.5 mm², AWG 20, black, 29742
Unit Price (€ / mtr.)
0.9044 € *
Available in 5 Days: 1,400 mtr. - if ordered today
Control cable, 22019, HELUKABEL
Robust connecting and control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools etc. To be recommended if the cable comes into contact with chemical agents.
FEATURES
- High flexibility at low temperature
- High abrasion resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 2 kV | |
| Colour | black | |
| Halogen free | No | |
| Number of cores | 4 | |
| Outer diameter | 6 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Material | PVC | |
| Rated voltage U0 | 300 V | |
| Protective conductor available | Yes | |
| Rated voltage | 300 V | |
| Drag chain suitable | No | |
| Product type | control line | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
