29740 | HELUKABEL

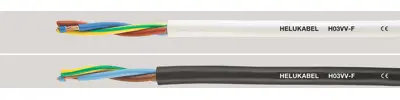

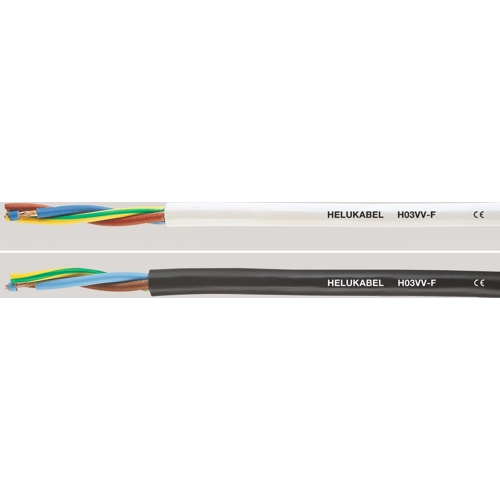

PVC control line H03VV-F 3 G 0.5 mm², AWG 20, white, 29740
Unit Price (€ / mtr.)
0.7616 € *
Available in 5 Days: 1,600 mtr. - if ordered today
Control cable, 22027, HELUKABEL
Robust connecting and control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools etc. To be recommended if the cable comes into contact with chemical agents.
FEATURES
- High flexibility at low temperature
- High abrasion resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 3 | |
| Rated voltage U0 | 300 V | |
| Rated voltage | 300 V | |
| Version | control line | |
| Cable cross-section | 0.5 mm² | |
| Test voltage | 2 kV | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Protective conductor available | Yes | |
| Cable material | copper, bright | |
| Material | PVC | |
| Outer diameter | 5.5 mm | |
| AWG cross-section | AWG 20 | |
| Drag chain suitable | No | |
| Core insulation material | PVC | |
| Colour | white | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
