29739 | HELUKABEL

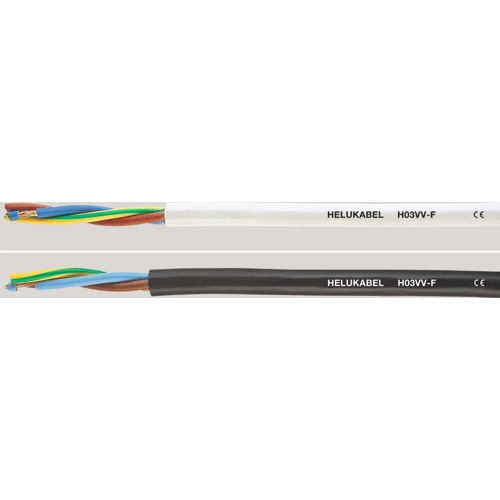

PVC control line H03VV-F 3 G 0.5 mm², AWG 20, black, 29739
Unit Price (€ / mtr.)
0.7616 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 22018, HELUKABEL
Robust connecting and control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools etc. To be recommended if the cable comes into contact with chemical agents.
FEATURES
- High flexibility at low temperature
- High abrasion resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Cable cross-section | 0.5 mm² | |
| Outer diameter | 5.5 mm | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Colour | black | |
| Number of cores | 3 | |
| Core insulation material | PVC | |
| Test voltage | 2 kV | |
| Rated voltage U0 | 300 V | |
| Protective conductor available | Yes | |
| Material | PVC | |
| Halogen free | No | |
| Rated voltage | 300 V | |
| AWG cross-section | AWG 20 | |
| Version | control line | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
