29736 | HELUKABEL

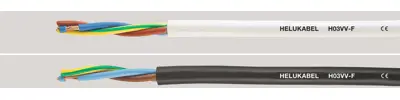

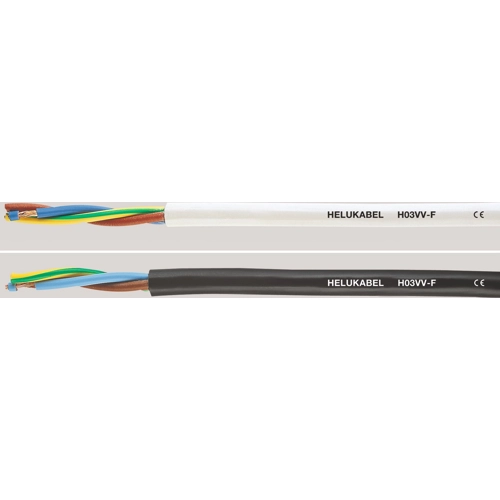

PVC control line H03VV-F 2 x 0.5 mm², AWG 20, black, 29736
Unit Price (€ / mtr.)
0.5831 € *
Available in 5 Days: 2,400 mtr. - if ordered today
Control cable, 22017, HELUKABEL
Robust connecting and control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools etc. To be recommended if the cable comes into contact with chemical agents.
FEATURES
- High flexibility at low temperature
- High abrasion resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | PVC | |
| Colour | black | |
| Number of cores | 2 | |
| Protective conductor available | No | |
| Outer diameter | 5.1 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 20 | |
| Test voltage | 2 kV | |
| Halogen free | No | |
| Cable cross-section | 0.5 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 300 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
