29490 | HELUKABEL

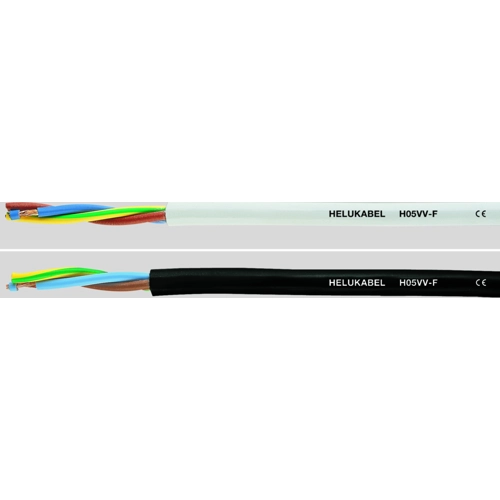

PVC control line H05VV-F 5 x 4.0 mm², AWG 12, unshielded, black, 29490
Unit Price (€ / mtr.)
5.3312 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
533.12 € *
Price list
Quantity
Price per unit*
100 mtr.
5.3312 €
500 mtr.
4.7362 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 29490, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: white
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Core insulation material | PVC | |
| Protective conductor available | No | |
| Temperature range (active) | -5 °C to 70 °C | |
| Version | control line | |
| Number of cores | 5 | |
| Standard number | VDE | |
| Rated voltage U0 | 300 V | |
| Conductor category | CL.5 = fine stranded | |
| Halogen free | No | |
| Drag chain suitable | No | |
| Shielding | unshielded | |
| AWG cross-section | AWG 12 | |
| Cable cross-section | 4.0 mm² | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Outer diameter | 13.7 mm | |
| Colour | black | |
| Test voltage | 2 kV | |
| Material | PVC | |
| Rated voltage | 500 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
