29481 | HELUKABEL

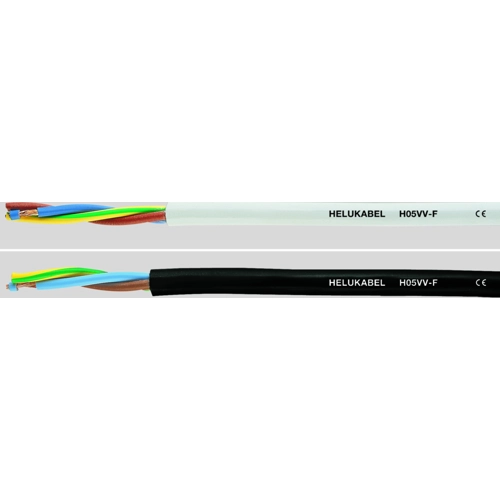

PVC control line H05VV-F 4 G 2.5 mm², AWG 14, unshielded, white, 29481
Unit Price (€ / mtr.)
3.1178 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
311.78 € *
Price list
Quantity
Price per unit*
100 mtr.
3.1178 €
500 mtr.
2.7608 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 29481, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: white
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 4 | |
| Cable cross-section | 2.5 mm² | |
| Halogen free | No | |
| Core insulation material | PVC | |
| AWG cross-section | AWG 14 | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V | |
| Protective conductor available | Yes | |
| Colour | white | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Standard number | VDE | |
| Cable material | copper, bright | |
| Drag chain suitable | No | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Shielding | unshielded | |
| Outer diameter | 11.2 mm | |
| Version | control line |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
