29475 | HELUKABEL

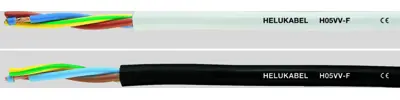

PVC control line H05VV-F 7 G 1.5 mm², AWG 16, unshielded, white, 29475
Control cable, 29475, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment. These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences of heat. The cables are suitable for fixed installation in furnitures, partition walls, decoration covering and in hollow spaces of prefabricated building parts. They are not qualified for use in outdoors or for use with industrial and farmer machineries, exceptionally in tailoring, etc.
FEATURES
- Cadmium-free
- Oil-resistant
- Free from harmful substances
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: white
- Conductor category: Cl.5 = fine-stranded
| Test voltage | 2 kV | |
| Rated voltage U0 | 300 V | |
| Rated voltage | 500 V | |
| Temperature range (active) | -5 °C to 70 °C | |
| Material | PVC | |
| Cable material | copper, bright | |
| Protective conductor available | Yes | |
| Cable cross-section | 1.5 mm² | |
| AWG cross-section | AWG 16 | |
| Standard number | VDE | |
| Halogen free | No | |
| Drag chain suitable | No | |
| Version | control line | |
| Number of cores | 7 | |
| Conductor category | CL.5 = fine stranded | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Shielding | unshielded | |
| Outer diameter | 10.8 mm | |
| Colour | white |
| Customs tariff number | 85444995 |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
