29471 | HELUKABEL
PVC control line H05VV-F 4 G 1.5 mm², AWG 16, unshielded, white, 29471
Unit Price (€ / mtr.)
1.9159 € *
Available in 5 Days: 400 mtr. - if ordered today
Total Price:
191.59 € *
Price list
Quantity
Price per unit*
100 mtr.
1.9159 €
500 mtr.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale

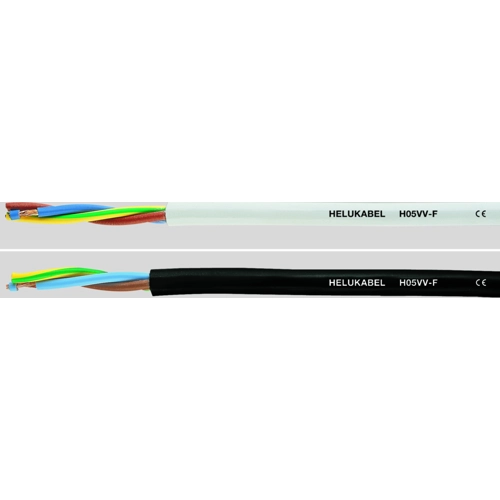

Control cable, 29471, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: white
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -5 °C to 70 °C | |
| Colour | white | |
| Cable material | copper, bright | |
| Drag chain suitable | No | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Standard number | VDE | |
| Core insulation material | PVC | |
| Rated voltage | 500 V | |
| Outer diameter | 9.2 mm | |
| Shielding | unshielded | |
| Number of cores | 4 | |
| Cable cross-section | 1.5 mm² | |
| Protective conductor available | Yes | |
| Test voltage | 2 kV | |
| Rated voltage U0 | 300 V | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Material | PVC | |
| AWG cross-section | AWG 16 | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
