29464 | HELUKABEL

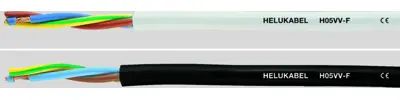

PVC control line H05VV-F 5 G 1.0 mm², AWG 18, unshielded, black, 29464
Unit Price (€ / mtr.)
1.8088 € *
Available in 5 Days: 1,100 mtr. - if ordered today
Total Price:
180.88 € *
Price list
Quantity
Price per unit*
100 mtr.
1.8088 €
500 mtr.
1.6065 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 29464, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: white
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 5 | |
| Halogen free | No | |
| Core insulation material | PVC | |
| Drag chain suitable | No | |
| Standard number | VDE | |
| Cable material | copper, bright | |
| Colour | black | |
| Product type | control line | |
| Conductor category | CL.5 = fine stranded | |
| Outer diameter | 8.8 mm | |
| Cable cross-section | 1.0 mm² | |
| Protective conductor available | Yes | |
| Test voltage | 2 kV | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| AWG cross-section | AWG 18 | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Shielding | unshielded | |
| Material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
