29455 | HELUKABEL

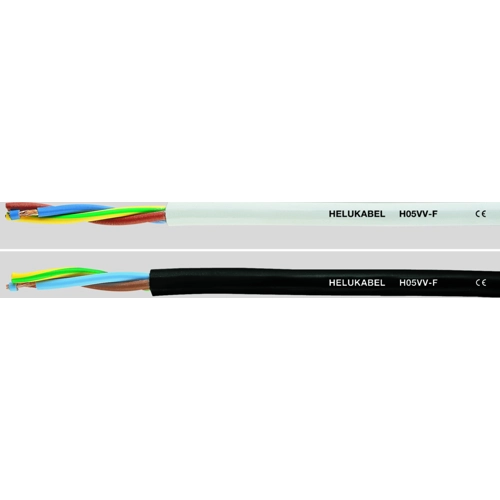

PVC control line H05VV-F 4 G 0.75 mm², AWG 19, unshielded, white, 29455
Unit Price (€ / mtr.)
1.1662 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
116.62 € *
Price list
Quantity
Price per unit*
100 mtr.
1.1662 €
500 mtr.
1.0353 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 29455, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: white
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 4 | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Test voltage | 2 kV | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Standard number | VDE | |
| Rated voltage U0 | 300 V | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Outer diameter | 7.4 mm | |
| Colour | white | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| AWG cross-section | AWG 19 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
