29454 | HELUKABEL

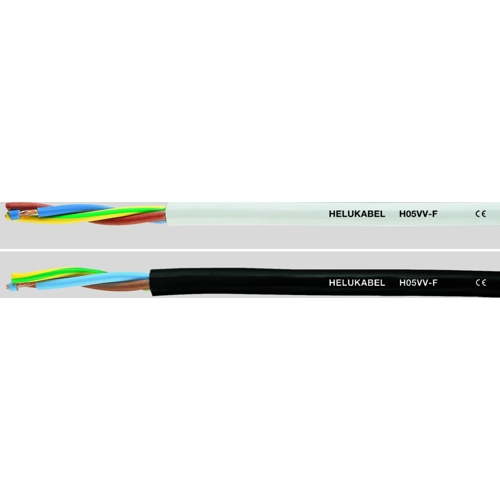

PVC control line H05VV-F 4 G 0.75 mm², AWG 19, unshielded, black, 29454
Unit Price (€ / mtr.)
1.1543 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
115.43 € *
Price list
Quantity
Price per unit*
100 mtr.
1.1543 €
500 mtr.
1.0234 €
*incl. VAT plus shipping costs
**Subject to prior sale
Control cable, 29454, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: white
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | PVC | |
| Colour | black | |
| Number of cores | 4 | |
| Protective conductor available | Yes | |
| Outer diameter | 7.4 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 19 | |
| Test voltage | 2 kV | |
| Halogen free | No | |
| Cable cross-section | 0.75 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | VDE | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
