29451 | HELUKABEL
PVC control line H05VV-F 2 x 0.75 mm², AWG 19, unshielded, white, 29451
Unit Price (€ / mtr.)
0.7140 € *
Available in 5 Days: 2,800 mtr. - if ordered today
Total Price:
71.40 € *
Price list
Quantity
Price per unit*
100 mtr.
0.7140 €
500 mtr.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale

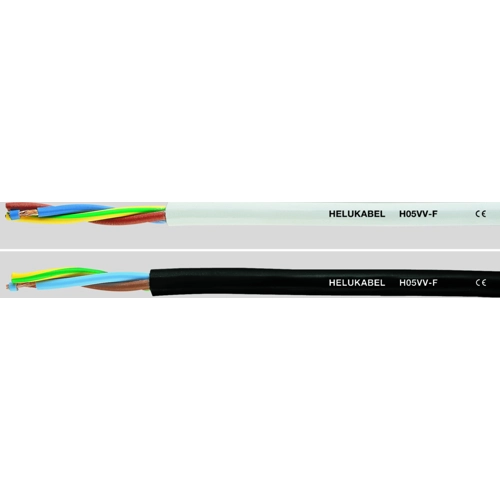

Control cable, 29451, HELUKABEL
These cables are especially suited to use for the appliance with medium mechanical stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. As far as this cable is admitted to the relevant specifications of the equipment.
FEATURES
- Free from harmful substances
- Oil-resistant
- Cadmium-free
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: white
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6.4 mm | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Shielding | unshielded | |
| Halogen free | No | |
| Standard number | VDE | |
| Number of cores | 2 | |
| Test voltage | 2 kV | |
| Material | PVC | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Protective conductor available | No | |
| Drag chain suitable | No | |
| Colour | white | |
| Rated voltage | 500 V | |
| Core insulation material | PVC | |
| Cable material | copper, bright | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable cross-section | 0.75 mm² | |
| AWG cross-section | AWG 19 | |
| Rated voltage U0 | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
