29407 | HELUKABEL

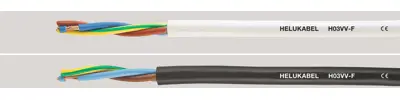

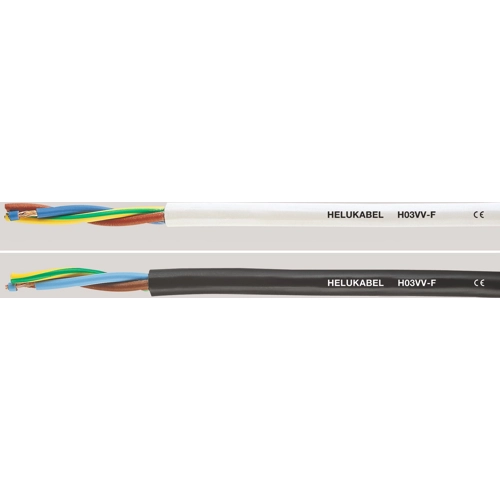

PVC control line H03VV-F 4 G 0.75 mm², AWG 19, white, 29407
Unit Price (€ / mtr.)
1.1305 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 22010, HELUKABEL
Robust connecting and control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools etc. To be recommended if the cable comes into contact with chemical agents.
FEATURES
- High flexibility at low temperature
- High abrasion resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Material | PVC | |
| AWG cross-section | AWG 19 | |
| Cable material | copper, bright | |
| Protective conductor available | Yes | |
| Drag chain suitable | No | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 4 | |
| Version | control line | |
| Rated voltage U0 | 300 V | |
| Core insulation material | PVC | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (active) | -5 °C to 70 °C | |
| Halogen free | No | |
| Test voltage | 2 kV | |
| Outer diameter | 6.3 mm | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Rated voltage | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
