29403 | HELUKABEL

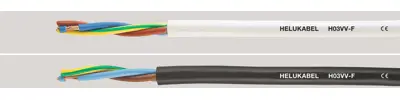

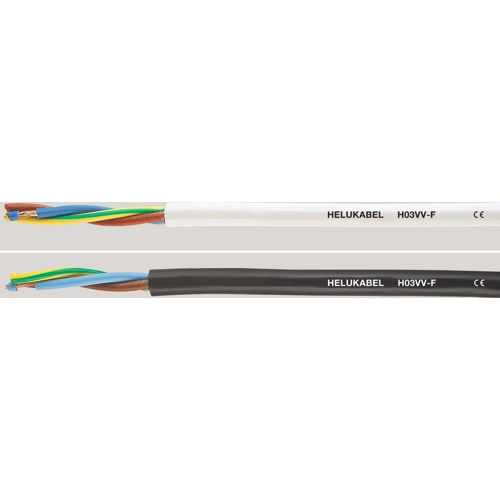

PVC control line H03VV-F 3 G 0.75 mm², AWG 19, white, 29403
Unit Price (€ / mtr.)
0.8925 € *
Available in 5 Days: 1,200 mtr. - if ordered today
Control cable, 22004, HELUKABEL
Robust connecting and control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools etc. To be recommended if the cable comes into contact with chemical agents.
FEATURES
- High flexibility at low temperature
- High abrasion resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable material | copper, bright | |
| Rated voltage U0 | 300 V | |
| Rated voltage | 300 V | |
| Version | control line | |
| Outer diameter | 5.7 mm | |
| Protective conductor available | Yes | |
| Halogen free | No | |
| Colour | white | |
| Conductor category | CL.5 = fine stranded | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Core insulation material | PVC | |
| Drag chain suitable | No | |
| Number of cores | 3 | |
| AWG cross-section | AWG 19 | |
| Test voltage | 2 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
