29400 | HELUKABEL

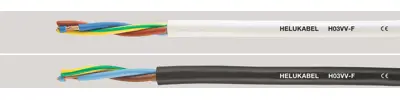

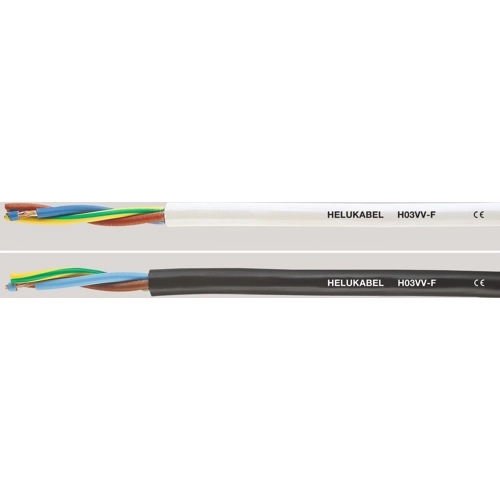

PVC control line H03VV-F 2 x 0.75 mm², AWG 19, black, 29400
Unit Price (€ / mtr.)
0.6902 € *
Available in 5 Days: 3,000 mtr. - if ordered today
Control cable, 22002, HELUKABEL
Robust connecting and control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools etc. To be recommended if the cable comes into contact with chemical agents.
FEATURES
- High flexibility at low temperature
- High abrasion resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 2 | |
| Halogen free | No | |
| Core insulation material | PVC | |
| Drag chain suitable | No | |
| Cable material | copper, bright | |
| Colour | black | |
| Product type | control line | |
| Conductor category | CL.5 = fine stranded | |
| Outer diameter | 5.4 mm | |
| Cable cross-section | 0.75 mm² | |
| Protective conductor available | No | |
| Test voltage | 2 kV | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| AWG cross-section | AWG 19 | |
| Rated voltage | 300 V | |
| Rated voltage U0 | 300 V | |
| Material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
