26234 | HELUKABEL

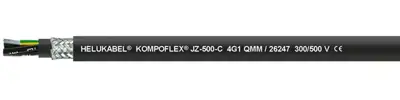

Thermoplastic control line KOMPOFLEX JZ-500-C 5 G 0.75 mm², AWG 19, shielded, black, 26234
Unit Price (€ / mtr.)
7.5208 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 26234, HELUKABEL
Extremly robust universal cable. This cable is specially installed in rubbish, sewage-treatment plants, composting works, animal stalls and greenhouses. The inner sheaths of those cables raise the mechanical stress. Suitable for installation for flexible use for medium mechanical, stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside. The high flexibility of this cable type makes it quick and easy to install. This screened cable is ideal for use in data signal transmission free from interferences for measurement and control engineering technology.
Features
- Resistant to UV-radiation, Oxygene, Ozone, Microbes, Hydrofluoric acid, Hydrochloric acid and diluted sulfuric acid
- Low adhesion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | thermoplastic | |
| Colour | black | |
| Number of cores | 5 | |
| Protective conductor available | Yes | |
| Outer diameter | 9.1 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 19 | |
| Test voltage | 4 kV | |
| Halogen free | Yes | |
| Cable cross-section | 0.75 mm² | |
| Version | control line | |
| Material | thermoplastic | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 100 °C | |
| Temperature range (active) | -30 °C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
