26129 | HELUKABEL

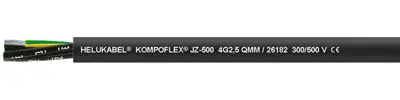

Thermoplastic control line KOMPOFLEX JZ-500 7 G 0.5 mm², AWG 20, unshielded, black, 26129
Unit Price (€ / mtr.)
3.1535 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 26129, HELUKABEL
Extremly robust universal cable. This cable is specially installed in rubbish, sewage-treatment plants, composting works, animal stalls and greenhouses. Suitable for installation for flexible use for medium mechanical, stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside.
Features
- Resistant to UV-radiation, Oxygene, Ozone, Microbes, Hydrofluoric acid, Hydrochloric acid and diluted sulfuric acid
- Low adhesion
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | thermoplastic | |
| Protective conductor available | Yes | |
| AWG cross-section | AWG 20 | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 3 kV | |
| Product type | control line | |
| Temperature range (active) | -30 °C to 90 °C | |
| Number of cores | 7 | |
| Core insulation material | thermoplastic | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -40 °C to 100 °C | |
| Colour | black | |
| Outer diameter | 7.4 mm | |
| Cable cross-section | 0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
