26029 | HELUKABEL

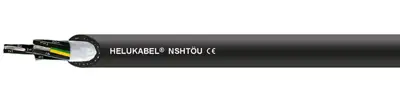

Rubber connection cable NSHTÖU 4 G 1.5 mm², AWG 16, shielded, black, 26029
Unit Price (€ / mtr.)
8.2705 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connecting cable, 26029, HELUKABEL
Reeling cable is used for applications involving high mechanical stress, especially for applications requiring frequent winding and unwinding with simultaneous tensile and torsional stress; for construction machinery, conveying and lifting equipment and crane systems. For use as a robust and weather resistant cable in roughest operations such as mobile transport equipment, railway engines and in mining. Suitable for installation in dry, damp and wet rooms as well as outdoors.
Features
- Resistant to: oil, ozone, solvents, petrol, acids, chemicals, greases
- Abrasion-resistant
- For outdoor use
- For horizontal reeling operations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | rubber | |
| Protective conductor available | Yes | |
| AWG cross-section | AWG 16 | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Cable material | copper, tin-plated | |
| Test voltage | 2.5 kV | |
| Product type | connection cable | |
| Temperature range (active) | -25 °C to 80 °C | |
| Number of cores | 4 | |
| Core insulation material | rubber | |
| Shielding | shielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | black | |
| Outer diameter | 15.6 mm | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
