24145 | HELUKABEL

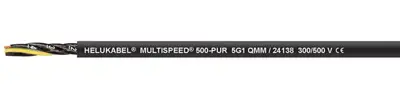

PUR connection cable MULTISPEED 500-PUR 5 G 1.5 mm², AWG 16, unshielded, black, 24145

Order No.: 93F8247
EAN: 4060892134388
MPN:
24145
24145 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
5.9976 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
599.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
5.9976 €

Connecting cable, 24145, HELUKABEL

PUR drag chain cable suitable for continuous operation with long travelling distance capabilities at high or low speeds in dry, damp and wet rooms, as well as outdoors. For applications where the highest demands are placed on flexibility and abrasion resistance, e.g. in energy supply chains, industrial robots, production lines, automation systems and on permanently moving machine parts for uninterrupted operation.

Features

  • Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
  • Highly restistant to alternate bending strength
  • Halogen-free
Technical specifications
Filter Property Value
Material PUR
Cable material copper, bright
Version connection line
Number of cores 5
Shielding unshielded
Core insulation material PP
Test voltage 3 kV
Cable cross-section 1.5 mm²
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -30 °C to 80 °C
Rated voltage U0 300 V
Drag chain suitable Yes
Protective conductor available Yes
Outer diameter 7.8 mm
Colour black
Rated voltage 500 V
Halogen free Yes
AWG cross-section AWG 16
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
