23151 | HELUKABEL
Silicone control line SiHF-C-Si 2 x 0.5 mm², AWG 20, shielded, brown, 23151
Unit Price (€ / mtr.)
5.0456 € *
Standard delivery time from the manufacturer is: 6 Weeks

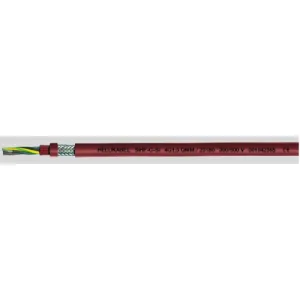

Control cable, 23151, HELUKABEL
Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant for permanent temperature up to +180°C, for short time operation up to +220°C. The good performance of the environmental resistant properties means that silicone cables can be used at temperatures down to -60°C. Silicone cables are halogen-free cables and are especially suited for installation in power stations.
FEATURES
- High-temperature resistant
- Halogen-free
- Oil-resistant
- Resistant to ozone and UV-radiation
Technical Data
- Cable material: Copper, tin-plated
- Test voltage: Silicone
- Color: brown
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Test voltage | 2 kV | |
| Rated voltage U0 | 300 V | |
| Rated voltage | 500 V | |
| Temperature range (active) | -60 °C to 180 °C | |
| Material | silicone | |
| Cable material | copper, tin-plated | |
| Protective conductor available | No | |
| Cable cross-section | 0.5 mm² | |
| AWG cross-section | AWG 20 | |
| Halogen free | Yes | |
| Drag chain suitable | No | |
| Version | control line | |
| Number of cores | 2 | |
| Conductor category | CL.5 = fine stranded | |
| Core insulation material | silicone | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Shielding | shielded | |
| Outer diameter | 8.1 mm | |
| Colour | brown |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
