23086 | HELUKABEL

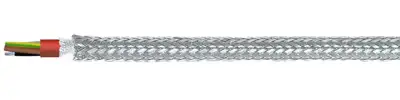

Silicone connection cable SiHF/GL-P 3 G 2.5 mm², AWG 14, shielded, red brown, 23086
Unit Price (€ / mtr.)
9.1511 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Connecting cable, 23086, HELUKABEL
Silicone control and connection cable for use wherever insulation is subjected to extreme temperature changes. The good performance of the environmental resistant properties means that the silicone cable can be used at temperatures down to -60°C. This product is halogen-free and is especially suited for installation in power stations. It has also found its use in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Only suitable for use in dry conditions.
Features
- High flash point
- Leaves an insulating layer of SiO2 when exposed to flames
- No significant changes in dielectric strength and insulation resistance even at higher temperature
Technical specifications
| Core insulation material | silicone | |
| Colour | red brown | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Outer diameter | 10.8 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 14 | |
| Test voltage | 2 kV | |
| Halogen free | Yes | |
| Cable cross-section | 2.5 mm² | |
| Version | connection line | |
| Material | silicone | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Temperature range (active) | -5 °C to 180 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
