23064 | HELUKABEL

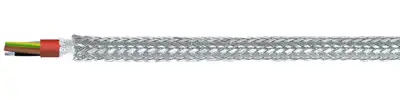

Silicone connection cable SiHF/GL-P 4 G 0.75 mm², AWG 19, shielded, red brown, 23064
Unit Price (€ / mtr.)
5.4978 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connecting cable, 23064, HELUKABEL
Silicone control and connection cable for use wherever insulation is subjected to extreme temperature changes. The good performance of the environmental resistant properties means that the silicone cable can be used at temperatures down to -60°C. This product is halogen-free and is especially suited for installation in power stations. It has also found its use in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Only suitable for use in dry conditions.
Features
- High flash point
- Leaves an insulating layer of SiO2 when exposed to flames
- No significant changes in dielectric strength and insulation resistance even at higher temperature
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | silicone | |
| Cable material | copper, tin-plated | |
| Version | connection line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 4 | |
| Shielding | shielded | |
| Core insulation material | silicone | |
| Test voltage | 2 kV | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Temperature range (active) | -5 °C to 180 °C | |
| Rated voltage U0 | 300 V | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Outer diameter | 8.7 mm | |
| Colour | red brown | |
| Rated voltage | 500 V | |
| Halogen free | Yes | |
| AWG cross-section | AWG 19 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
