23063 | HELUKABEL

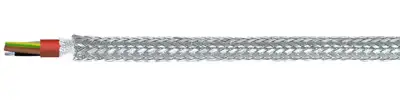

Silicone connection cable SiHF/GL-P 3 G 0.75 mm², AWG 19, shielded, red brown, 23063
Unit Price (€ / mtr.)
4.7719 € *
Available in 5 Days: 1,300 mtr. - if ordered today
Connecting cable, 23063, HELUKABEL
Silicone control and connection cable for use wherever insulation is subjected to extreme temperature changes. The good performance of the environmental resistant properties means that the silicone cable can be used at temperatures down to -60°C. This product is halogen-free and is especially suited for installation in power stations. It has also found its use in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Only suitable for use in dry conditions.
Features
- High flash point
- Leaves an insulating layer of SiO2 when exposed to flames
- No significant changes in dielectric strength and insulation resistance even at higher temperature
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Shielding | shielded | |
| Test voltage | 2 kV | |
| Colour | red brown | |
| Drag chain suitable | No | |
| Rated voltage U0 | 300 V | |
| Outer diameter | 7.9 mm | |
| Protective conductor available | Yes | |
| Core insulation material | silicone | |
| Temperature range (active) | -5 °C to 180 °C | |
| Number of cores | 3 | |
| Cable material | copper, tin-plated | |
| AWG cross-section | AWG 19 | |
| Material | silicone | |
| Rated voltage | 500 V | |
| Version | connection line | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
