22944 | HELUKABEL

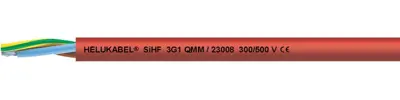

Silicone control line SiHF 3 x 1.0 mm², AWG 18, unshielded, red brown, 22944
Unit Price (€ / mtr.)
2.3681 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
236.81 € *
Price list
Quantity
Price per unit*
100 mtr.
2.3681 €
500 mtr.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, 22944, HELUKABEL
Silicone cable was evolved for use wherever insulation is subjected to extreme temperature changes. The good performance of the environmental resistant properties means that silicone cable can be used at temperatures down to -60°C. Silicone cable is halogen-free cables and is especially suited for installation in power stations. It has also found it's use in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Due to elastical characteristic of core insulations, this is used as flexible connection cable.
Features
- Increased temperature resistance
- Tinned wire
- Halogen-free
- High flash point
- Leaves an insulating layer of SiO2 when exposed to flames
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | silicone | |
| AWG cross-section | AWG 18 | |
| Shielding | unshielded | |
| Cable material | copper, tin-plated | |
| Colour | red brown | |
| Drag chain suitable | No | |
| Cable cross-section | 1.0 mm² | |
| Temperature range (active) | -25 °C to 180 °C | |
| Rated voltage U0 | 300 V | |
| Material | silicone | |
| Halogen free | Yes | |
| Rated voltage | 500 V | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2 kV | |
| Outer diameter | 7 mm | |
| Number of cores | 3 | |
| Product type | control line | |
| Protective conductor available | No | |
| Temperature range (unmoved) | -60 °C to 180 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
