22653 | HELUKABEL

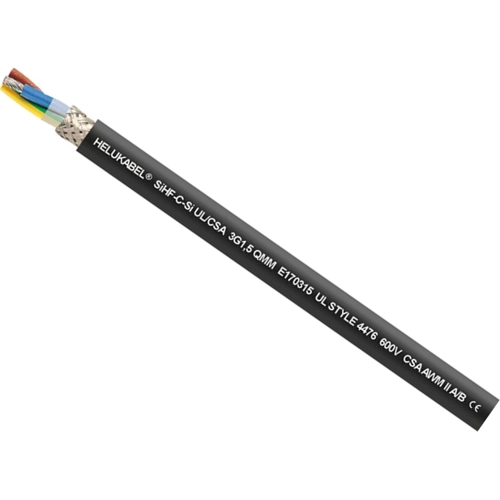

Silicone control line SiHF-C-Si UL/CSA 4 G 1.5 mm², AWG 16, shielded, black, 22653
Unit Price (€ / mtr.)
20.1943 € *
Standard delivery time from the manufacturer is: 6 Weeks
Silicone cable, 22653, HELUKABEL
This silicone cable is halogen-free and is especially suited for installation in power stations, iron, steel and rolling mills, in solariums, sauna facilities, foundries, in the aviation industry, ship building, as well as in ceramic, glass and cement factories. Due to the elastic properties of the core insulation, this silicone cable is ideally suitable as a flexible connection cable. An interference-free transmission of signals and pulse is assured by the high screening density.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Rated voltage UL/CSA | 600 V | |
| Material | silicone | |
| Protective conductor available | Yes | |
| AWG cross-section | AWG 16 | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2 kV | |
| Product type | control line | |
| Number of cores | 4 | |
| Core insulation material | silicone | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Colour | black | |
| Outer diameter | 10.9 mm | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
