22652 | HELUKABEL
Silicone control line SiHF-C-Si UL/CSA 3 G 1.5 mm², AWG 16, shielded, black, 22652
Unit Price (€ / mtr.)
17.2788 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

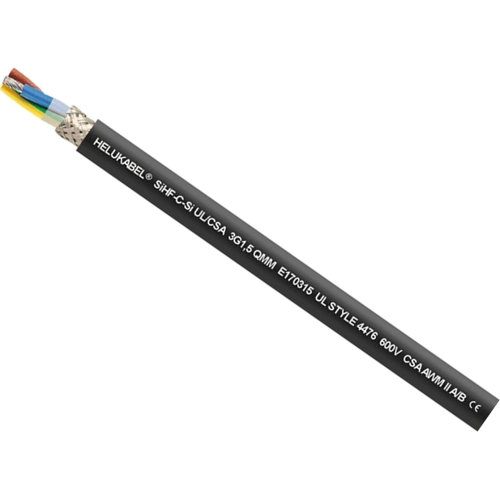

Silicone cable, 22652, HELUKABEL
This silicone cable is halogen-free and is especially suited for installation in power stations, iron, steel and rolling mills, in solariums, sauna facilities, foundries, in the aviation industry, ship building, as well as in ceramic, glass and cement factories. Due to the elastic properties of the core insulation, this silicone cable is ideally suitable as a flexible connection cable. An interference-free transmission of signals and pulse is assured by the high screening density.
Technical specifications
| Core insulation material | silicone | |
| Colour | black | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Outer diameter | 10.1 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 16 | |
| Test voltage | 2 kV | |
| Rated voltage UL/CSA | 600 V | |
| Halogen free | Yes | |
| Cable cross-section | 1.5 mm² | |
| Version | control line | |
| Material | silicone | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
