22638 | HELUKABEL
Silicone control line SiHF-C-Si UL/CSA 3 G 0.5 mm², AWG 20, shielded, black, 22638
Unit Price (€ / mtr.)
11.9714 € *
Available in 5 Days: 3,000 mtr. - if ordered today

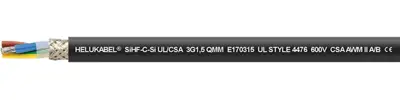

Silicone cable, 22638, HELUKABEL
This silicone cable is halogen-free and is especially suited for installation in power stations, iron, steel and rolling mills, in solariums, sauna facilities, foundries, in the aviation industry, ship building, as well as in ceramic, glass and cement factories. Due to the elastic properties of the core insulation, this silicone cable is ideally suitable as a flexible connection cable. An interference-free transmission of signals and pulse is assured by the high screening density.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Conductor category | CL.5 = fine stranded | |
| Cable cross-section | 0.5 mm² | |
| Shielding | shielded | |
| Test voltage | 2 kV | |
| Version | control line | |
| Rated voltage U0 | 300 V | |
| Rated voltage | 500 V | |
| Protective conductor available | Yes | |
| Outer diameter | 8.6 mm | |
| Number of cores | 3 | |
| AWG cross-section | AWG 20 | |
| Core insulation material | silicone | |
| Colour | black | |
| Halogen free | Yes | |
| Material | silicone | |
| Cable material | copper, bright | |
| Drag chain suitable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
