22261 | HELUKABEL

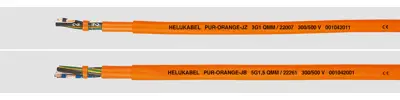

PUR control line PUR-ORANGE 5 G 1.5 mm², AWG 16, orange, 22261
Unit Price (€ / mtr.)
4.3316 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 22261, HELUKABEL
Robust connecting and control cable with an outstanding resistance to oil and abrasion. Suitable for use in tool making and machine industries, steel works, on building sites and in the oil and coal industries. The cable can also be used for portable tools. etc. To be recommended if the cable comes into contact with chemical agents.
FEATURES
- High flexibility at low temperature
- Oil-resistant
- UV-resistant
- High abrasion resistance
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Colour | orange | |
| Core insulation material | PVC | |
| Temperature range (active) | -15 °C to 80 °C | |
| Drag chain suitable | No | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| Cable cross-section | 1.5 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Number of cores | 5 | |
| Outer diameter | 9.7 mm | |
| Material | PUR | |
| Test voltage | 3 kV | |
| Product type | control line | |
| Protective conductor available | Yes | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
