22184 | HELUKABEL

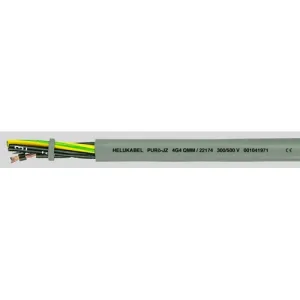

PUR control line PURö-JZ 7 x 10 mm², AWG 8, unshielded, gray, 22184
Unit Price (€ / mtr.)
29.6905 € *
Standard delivery time from the manufacturer is: 6 Weeks
PUR Control cable, 22184, HELUKABEL
PURö-JZ is an extremely robust control cable with high abrasion and tear resistant properties. With high-grade oil resistant PVC core insulation. Due to its high resistance to mineral oils and especially to coolant emulsions, it is especially suited for use in the machine, tool making, plant construction as well as in the steel industry for difficult and problem areas.
FEATURES
- UV-radiaton resistant
- Oil-resistant
- Cadmium-free
- Ozone-resistant
Technical Data
- Cable material: Copper, bright
- Test voltage: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 7 | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Test voltage | 4 kV | |
| Cable cross-section | 10 mm² | |
| Core colour sequence | black | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -20 °C to 80 °C | |
| Rated voltage U0 | 300 V | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Outer diameter | 20.9 mm | |
| Colour | gray | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| AWG cross-section | AWG 8 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
