22067 | HELUKABEL

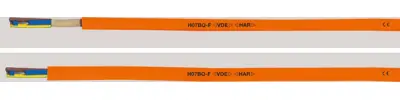

PUR control line H07BQ-F 5 G 2.5 mm², AWG 14, unshielded, orange, 22067
Unit Price (€ / mtr.)
6.2118 € *
Available in 5 Days: 2,500 mtr. - if ordered today
Control cable, 22067, HELUKABEL
These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.
FEATURES
- Abrasion resistant
- Tear resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 5 | |
| Rated voltage U0 | 450 V | |
| Rated voltage | 750 V | |
| Version | control line | |
| Cable cross-section | 2.5 mm² | |
| Test voltage | 2.5 kV | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Protective conductor available | Yes | |
| Standard number | VDE | |
| Cable material | copper, bright | |
| Material | PUR | |
| Outer diameter | 13.4 mm | |
| AWG cross-section | AWG 14 | |
| Drag chain suitable | No | |
| Core insulation material | rubber | |
| Colour | orange | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -40 °C to 80 °C | |
| Shielding | unshielded | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
