22065 | HELUKABEL

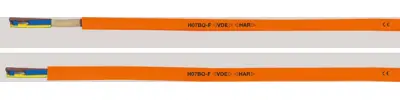

PUR control line H07BQ-F 3 G 2.5 mm², AWG 14, unshielded, orange, 22065
Unit Price (€ / mtr.)
4.0579 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 22065, HELUKABEL
These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.
FEATURES
- Abrasion resistant
- Tear resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage U0 | 450 V | |
| Material | PUR | |
| Outer diameter | 10.4 mm | |
| Protective conductor available | Yes | |
| Version | control line | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Drag chain suitable | No | |
| Number of cores | 3 | |
| Shielding | unshielded | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | VDE | |
| Core insulation material | rubber | |
| Cable material | copper, bright | |
| Halogen free | No | |
| Colour | orange | |
| Rated voltage | 750 V | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -40 °C to 80 °C | |
| Cable cross-section | 2.5 mm² | |
| AWG cross-section | AWG 14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
