22064 | HELUKABEL

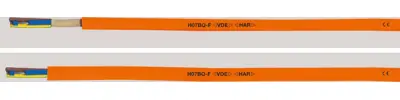

PUR control line H07BQ-F 2 x 2.5 mm², AWG 14, unshielded, orange, 22064
Unit Price (€ / mtr.)
3.2963 € *
Available in 5 Days: 1,400 mtr. - if ordered today
Control cable, 22064, HELUKABEL
These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.
FEATURES
- Abrasion resistant
- Tear resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Temperature range (active) | -40 °C to 80 °C | |
| Standard number | VDE | |
| Cable material | copper, bright | |
| Rated voltage U0 | 450 V | |
| Rated voltage | 750 V | |
| Version | control line | |
| Shielding | unshielded | |
| Outer diameter | 9.8 mm | |
| Protective conductor available | No | |
| Halogen free | No | |
| Colour | orange | |
| Conductor category | CL.5 = fine stranded | |
| Cable cross-section | 2.5 mm² | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Core insulation material | rubber | |
| Drag chain suitable | No | |
| Number of cores | 2 | |
| AWG cross-section | AWG 14 | |
| Test voltage | 2.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
