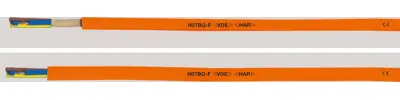

22061 | HELUKABEL
PUR control line H07BQ-F 5 G 1.5 mm², AWG 16, unshielded, orange, 22061
Unit Price (€ / mtr.)
4.1174 € *
Available in 5 Days: 2,000 mtr. - if ordered today
Control cable, 22061, HELUKABEL
These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.
FEATURES
- Abrasion resistant
- Tear resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 11 mm | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Shielding | unshielded | |
| Halogen free | No | |
| Standard number | VDE | |
| Number of cores | 5 | |
| Test voltage | 2.5 kV | |
| Material | PUR | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Protective conductor available | Yes | |
| Drag chain suitable | No | |
| Colour | orange | |
| Rated voltage | 750 V | |
| Core insulation material | rubber | |
| Cable material | copper, bright | |
| Temperature range (active) | -40 °C to 80 °C | |
| Cable cross-section | 1.5 mm² | |
| AWG cross-section | AWG 16 | |
| Rated voltage U0 | 450 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
