22060 | HELUKABEL

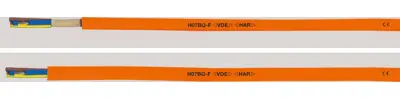

PUR control line H07BQ-F 4 G 1.5 mm², AWG 16, unshielded, orange, 22060
Unit Price (€ / mtr.)
3.2844 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 22060, HELUKABEL
These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.
FEATURES
- Abrasion resistant
- Tear resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 750 V | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Core insulation material | rubber | |
| Conductor category | CL.5 = fine stranded | |
| AWG cross-section | AWG 16 | |
| Standard number | VDE | |
| Halogen free | No | |
| Cable cross-section | 1.5 mm² | |
| Protective conductor available | Yes | |
| Number of cores | 4 | |
| Outer diameter | 10 mm | |
| Temperature range (active) | -40 °C to 80 °C | |
| Shielding | unshielded | |
| Colour | orange | |
| Drag chain suitable | No | |
| Version | control line | |
| Rated voltage U0 | 450 V | |
| Material | PUR | |
| Cable material | copper, bright | |
| Test voltage | 2.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
