22058 | HELUKABEL

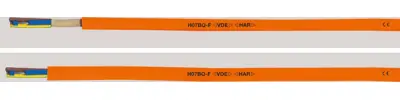

PUR control line H07BQ-F 2 x 1.5 mm², AWG 16, unshielded, orange, 22058
Unit Price (€ / mtr.)
2.2491 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 22058, HELUKABEL
These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.
FEATURES
- Abrasion resistant
- Tear resistant
- UV-resistant
- Oil-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: orange
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Core insulation material | rubber | |
| Temperature range (active) | -40 °C to 80 °C | |
| Test voltage | 2.5 kV | |
| Colour | orange | |
| Halogen free | No | |
| Number of cores | 2 | |
| Shielding | unshielded | |
| Outer diameter | 8.7 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Material | PUR | |
| Rated voltage U0 | 450 V | |
| Standard number | VDE | |
| Protective conductor available | No | |
| Rated voltage | 750 V | |
| Drag chain suitable | No | |
| Product type | control line | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
