21501 | HELUKABEL

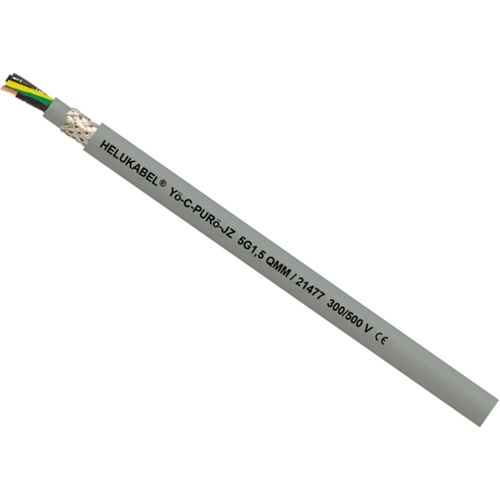

PUR control line Yö-C-PURö-JZ 4 G 2.5 mm², AWG 14, shielded, gray, 21501
Unit Price (€ / mtr.)
8.5799 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 21501, HELUKABEL
The 21501 is a extremely robust control cable characterised by high abrasion and notch resistance properties. Used for critical areas in such applications as machinery, tooling and plant construction, in rolling mills and steel works because of the resistance to mineral oils and to coolant emulsions in particular. The mechanical strength of the cable is increased by the additional oil-resistant inner sheath. The ideal interference-protected control cable for such applications as given above. Suitable for outdoor installation. This screened cable is particularly suitable for the interference-free transmission in instrumentation and control engineering applications (electromagnetic compatibillity).
Features
- Cores stranded in layers with optimal lay lengths
- Core wrapping of fleece guarantees easy cable stripping
Technical specifications
| Core insulation material | PVC | |
| Colour | gray | |
| Number of cores | 4 | |
| Protective conductor available | Yes | |
| Outer diameter | 11.5 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 14 | |
| Test voltage | 4 kV | |
| Halogen free | No | |
| Core colour sequence | black | |
| Cable cross-section | 2.5 mm² | |
| Version | control line | |
| Material | PUR | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -20 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
