21285 | HELUKABEL

PUR control line F-C-PURö-JZ 7 G 1.5 mm², AWG 16, shielded, gray, 21285

Order No.: 93F6408
EAN: 4060892042706
MPN:
21285
Series: F-C-PURö-JZ
21285 HELUKABEL Control Cables

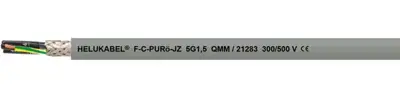

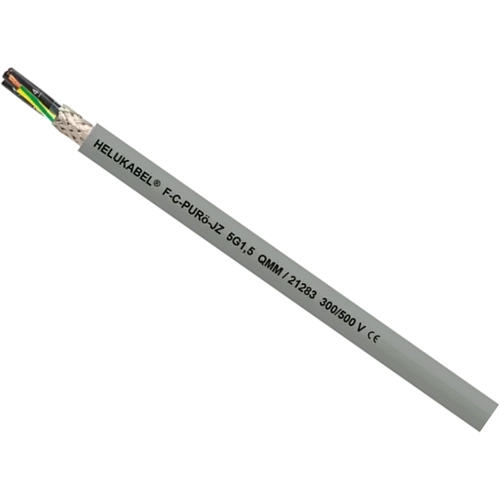

Image may differ
Unit Price (€ / mtr.)
6.0095 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
600.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
6.0095 €

Control cable, 21285, HELUKABEL

The 21285 is a extremely robust control cable characterised by high abrasion and notch resistance properties. Used for critical areas in such applications as machinery, tooling and plant construction, in rolling mills and steel works because of the resistance to mineral oils and to coolant emulsions in particular. Rapid and safe installation assured by the good flexibility of the cable. Suitable for outdoor installation. An interference-free transmission of signals and pulses is assured by the high screening density. The ideal interference-protected control cable for such applications as given above.

Features

  • Cores stranded in layers with optimal lay-length
  • Separating foil
  • Core wrapping of fleece guarantees easy cable stripping
Technical specifications
Rated voltage 500 V
Temperature range (unmoved) -40 °C to 80 °C
Core insulation material PVC
Conductor category CL.5 = fine stranded
AWG cross-section AWG 16
Halogen free No
Cable cross-section 1.5 mm²
Protective conductor available Yes
Number of cores 7
Outer diameter 9.9 mm
Core colour sequence black
Temperature range (active) -20 °C to 80 °C
Shielding shielded
Colour gray
Drag chain suitable No
Version control line
Rated voltage U0 300 V
Material PUR
Cable material copper, bright
Test voltage 3 kV
Logistics
Customs tariff number 85444995
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
