21283 | HELUKABEL

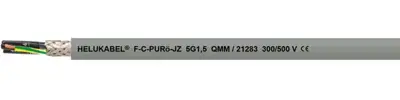

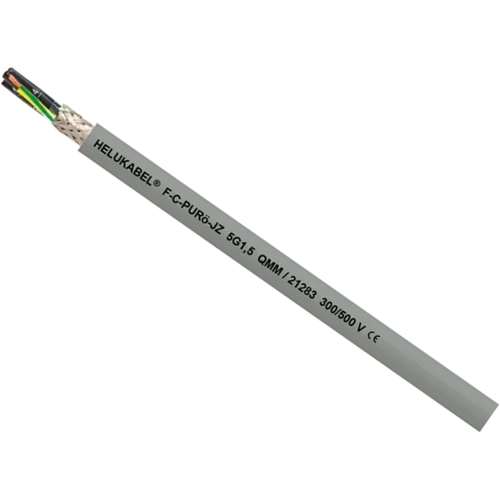

PUR control line F-C-PURö-JZ 5 G 1.5 mm², AWG 16, shielded, gray, 21283
Unit Price (€ / mtr.)
4.7362 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 21283, HELUKABEL
The 21283 is a extremely robust control cable characterised by high abrasion and notch resistance properties. Used for critical areas in such applications as machinery, tooling and plant construction, in rolling mills and steel works because of the resistance to mineral oils and to coolant emulsions in particular. Rapid and safe installation assured by the good flexibility of the cable. Suitable for outdoor installation. An interference-free transmission of signals and pulses is assured by the high screening density. The ideal interference-protected control cable for such applications as given above.
Features
- Cores stranded in layers with optimal lay-length
- Separating foil
- Core wrapping of fleece guarantees easy cable stripping
Technical specifications
| Core insulation material | PVC | |
| Colour | gray | |
| Number of cores | 5 | |
| Protective conductor available | Yes | |
| Outer diameter | 9 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 16 | |
| Test voltage | 3 kV | |
| Halogen free | No | |
| Core colour sequence | black | |
| Cable cross-section | 1.5 mm² | |
| Version | control line | |
| Material | PUR | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -20 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
