21256 | HELUKABEL
PUR control line F-C-PURö-JZ 5 G 1.0 mm², AWG 18, shielded, gray, 21256
Unit Price (€ / mtr.)
4.1174 € *
Available in 5 Days: 500 mtr. - if ordered today

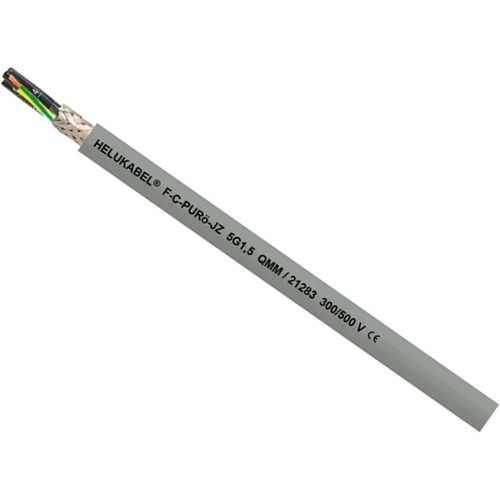

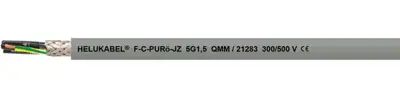

Control cable, 21256, HELUKABEL
The 21256 is a extremely robust control cable characterised by high abrasion and notch resistance properties. Used for critical areas in such applications as machinery, tooling and plant construction, in rolling mills and steel works because of the resistance to mineral oils and to coolant emulsions in particular. Rapid and safe installation assured by the good flexibility of the cable. Suitable for outdoor installation. An interference-free transmission of signals and pulses is assured by the high screening density. The ideal interference-protected control cable for such applications as given above.
Features
- Cores stranded in layers with optimal lay-length
- Separating foil
- Core wrapping of fleece guarantees easy cable stripping
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Rated voltage U0 | 300 V | |
| Version | control line | |
| Core colour sequence | black | |
| Rated voltage | 500 V | |
| Cable cross-section | 1.0 mm² | |
| Number of cores | 5 | |
| Cable material | copper, bright | |
| Halogen free | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -20 °C to 80 °C | |
| Material | PUR | |
| Shielding | shielded | |
| Outer diameter | 8 mm | |
| Core insulation material | PVC | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Drag chain suitable | No | |
| Test voltage | 3 kV | |
| AWG cross-section | AWG 18 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
