21254 | HELUKABEL

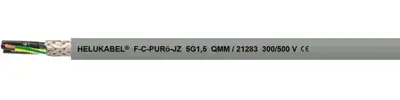

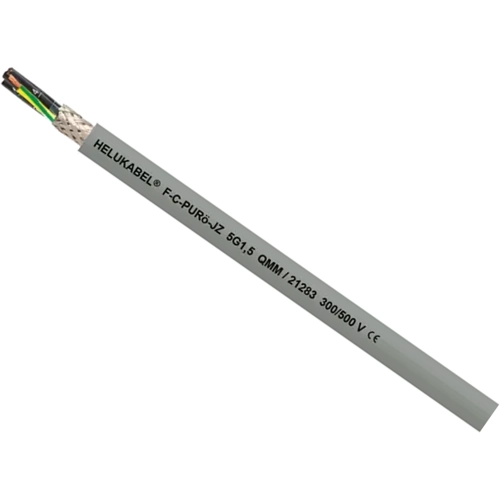

PUR control line F-C-PURö-JZ 3 G 1.0 mm², AWG 18, shielded, gray, 21254
Unit Price (€ / mtr.)
2.9512 € *
Available in 5 Days: 200 mtr. - if ordered today
Control cable, 21254, HELUKABEL
The 21254 is a extremely robust control cable characterised by high abrasion and notch resistance properties. Used for critical areas in such applications as machinery, tooling and plant construction, in rolling mills and steel works because of the resistance to mineral oils and to coolant emulsions in particular. Rapid and safe installation assured by the good flexibility of the cable. Suitable for outdoor installation. An interference-free transmission of signals and pulses is assured by the high screening density. The ideal interference-protected control cable for such applications as given above.
Features
- Cores stranded in layers with optimal lay-length
- Separating foil
- Core wrapping of fleece guarantees easy cable stripping
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Core colour sequence | black | |
| AWG cross-section | AWG 18 | |
| Outer diameter | 6.9 mm | |
| Test voltage | 3 kV | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Halogen free | No | |
| Temperature range (active) | -20 °C to 80 °C | |
| Shielding | shielded | |
| Number of cores | 3 | |
| Colour | gray | |
| Material | PUR | |
| Protective conductor available | Yes | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Cable cross-section | 1.0 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Drag chain suitable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
