18563 | HELUKABEL

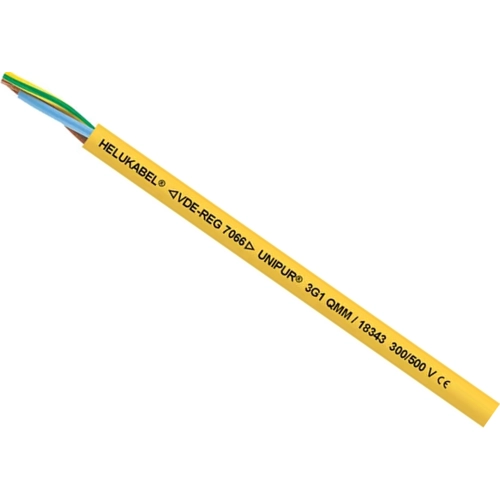

PUR connection and control cable UNIPUR 3 G 2.5 mm², AWG 14, unshielded, yellow, 18563
Unit Price (€ / mtr.)
6.2713 € *
Available in 5 Days: 100 mtr. - if ordered today
Connection cable, 18563, HELUKABEL
The 18563 is a robust, flexible cable for use in dry, damp and wet rooms, as well as outdoors. 0.5-1 mm²: for connecting devices with light mechanical stress in households and offices (e.g. portable household appliances, hand lamps). 1.5-16 mm²: for connecting devices with medium mechanical stress in commercial and agricultural workshops (e.g. power tools such as drills, circular saws). When installed in pipes or similar closed systems, the cable is permitted for use up to and including 1000 V alternating voltage or 750 V direct voltage to earth.
Features
- Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- For outdoor use
- Flexible in cold temperatures
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Test voltage | 3 kV | |
| Outer diameter | 10.4 mm | |
| Shielding | unshielded | |
| Temperature range (active) | -40 °C to 90 °C | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Protective conductor available | Yes | |
| Number of cores | 3 | |
| Core insulation material | TPE | |
| Version | connection line | |
| Halogen free | Yes | |
| Rated voltage | 750 V | |
| Cable cross-section | 2.5 mm² | |
| AWG cross-section | AWG 14 | |
| Material | PUR | |
| Rated voltage U0 | 450 V | |
| Colour | yellow |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
