18343 | HELUKABEL

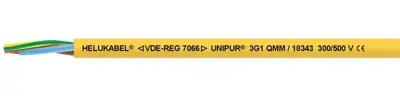

PUR connection and control cable UNIPUR 3 G 1.0 mm², AWG 18, unshielded, yellow, 18343
Unit Price (€ / mtr.)
3.2606 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connection cable, 18343, HELUKABEL
The 18343 is a robust, flexible cable for use in dry, damp and wet rooms, as well as outdoors. 0.5-1 mm²: for connecting devices with light mechanical stress in households and offices (e.g. portable household appliances, hand lamps). 1.5-16 mm²: for connecting devices with medium mechanical stress in commercial and agricultural workshops (e.g. power tools such as drills, circular saws). When installed in pipes or similar closed systems, the cable is permitted for use up to and including 1000 V alternating voltage or 750 V direct voltage to earth.
Features
- Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- For outdoor use
- Flexible in cold temperatures
- Halogen-free
Technical specifications
| Core insulation material | TPE | |
| Colour | yellow | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Outer diameter | 7 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 18 | |
| Test voltage | 3 kV | |
| Halogen free | Yes | |
| Cable cross-section | 1.0 mm² | |
| Version | connection line | |
| Material | PUR | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (active) | -40 °C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
