16349 | HELUKABEL

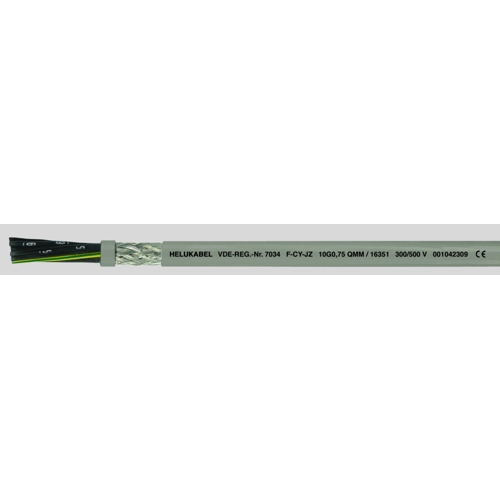

PVC control line F-CY-JZ 7 G 0.75 mm², AWG 19, shielded, gray, 16349
Unit Price (€ / mtr.)
2.3443 € *
Available in 5 Days: 2,500 mtr. - if ordered today
PVC Control cable, 16349, HELUKABEL
For use as a data cable in control circuits, in tool-making and machine industries as well as a signal cable in computer systems and electronics. The more usual PVC inner sheath has been replaced in these cables by a stabilising foil separator, thus reducing the total diameter of the cables considerably and thereby reducing the bending radius, total weight etc.
FEATURES
- Good chemical resistance
- Flame-retardant
- Oil-resistant
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | PVC | |
| Colour | gray | |
| Number of cores | 7 | |
| Protective conductor available | Yes | |
| Outer diameter | 8.4 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 19 | |
| Test voltage | 4 kV | |
| Halogen free | No | |
| Core colour sequence | black | |
| Cable cross-section | 0.75 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -10 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | VDE | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
